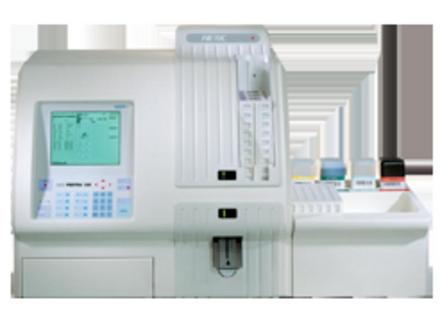

Máy xét nghiệm huyết học Pentra 120 Horiba ABX
- Tải Báo giá - Tài liệu
- Giới thiệu
- Thông số kĩ thuật
- Cấu hình
- Phụ kiện
- Nhận xét
- Sản phẩm cùng phân khúc giá
Overview
Impedance, cytochemistry & focused-flow cytometry (DHSS* technology).
Walkaway rack loading and continuous feed flexibility.
Automatic, immediate and user-defined rerun of abnormals.
48 hours post-draw stability.
SPS option (automatic slide-maker).
*ABX patent
Features
ABX Pentra 120
Methods of measurement: Cytochemistry, impedance, absorbance and flow cytometry(Eosinofix* and LMNE matrix)
DHSS*: Focused flow cytometry and sequential measurement (impedance and absorbance)
Automatic re-run of samples: Selective and programmable (hematology parameters and smears)
Rotative mixing of samples: Smooth and efficient
Liquid valves* ABX (no pinch valves): Reliability and volume accuracy
*ABX patents
Impedance, cytochemistry & focused-flow cytometry (DHSS* technology).
Walkaway rack loading and continuous feed flexibility.
Automatic, immediate and user-defined rerun of abnormals.
48 hours post-draw stability.
SPS option (automatic slide-maker).
*ABX patent
Features
ABX Pentra 120
Methods of measurement: Cytochemistry, impedance, absorbance and flow cytometry(Eosinofix* and LMNE matrix)
DHSS*: Focused flow cytometry and sequential measurement (impedance and absorbance)
Automatic re-run of samples: Selective and programmable (hematology parameters and smears)
Rotative mixing of samples: Smooth and efficient
Liquid valves* ABX (no pinch valves): Reliability and volume accuracy
*ABX patents
Specifications
Technical
Samples
Results
Technical
| Weight | 90 kg |
| Power supply | 110/220 V - 50/60 Hz - 1000 VA |
| Dimensions | 66,8 x 116,2 x 54,4 (H x W x D) cm. |
| Printer | Laser printer |
| Throughout | 120 tests/hour |
| Data processing | Multi-tasking software, Floppy disk. RS232C. Mono or bidirectional interfacing Floppy disc, RS 232C, Mono and bi-directional connection |
| Memory capacity | > 90 000 results |
Samples
| 120 tests/hour (closed tube) | |
| Parameters (24+2) | WBC, RBC, HGB, HCT, MCV, RDW, MCH, MCHC, PLT, MPV, PCT, PDW, % and # LYM, MON, NEU, EOS, BAS |
| Plus | ALY = Atypical Lymphocytes (% and #) LIC= Large Immature Cells (% and #) |
| Graphs | High resolution leucocyte differential matrix RBC, PLT, and BAS histograms. |
| Volume | Closed tube mode : 200 µl Open tube mode : 130 µl |
| Stability | 48 hours |
| Operating sample mode | Vertical rack loader. End-over-end rotation for smooth sample mixing. Maximum load: 15 racks (150 tubes) |
| Identification | Alphanumeric / Bar-code reader |
Results
| Parameters | Presicion (cv %) | Linearity |
| WBC | < 2% (at 10.10³/mm³) | 0-150.10³/mm³ |
| RBC | < 2% (at 5.0.106/mm³ ) | 0-8,1.106/mm³ |
| HGB | < 1% (at 15 g/dl) | 0-25 g/dl |
| HCT | < 2% (at 45%) | 0-80% |
| PLT (whole blood) | < 5% (at 300.10³/mm³) | 0-2000.10³/mm³ |
| PLT (PLT concentrate) | 0-4500.10³/mm³ | |
| LYM | 3.58% (at 23,3%) | 0-100% |
| MON | 8,11% (at 8,2%) | 0-100% |
| NEU | 2% (at 65,4%) | 0-100% |
| EOS | 11,45% (at 2,4%) | 0-100% |
| BAS | 30% | 0-100% |
| Parameters | Presicion (cv %) | Linearity |
| WBC | < 95% | 0-150 x 103 / mm3 |
| RBC | < 95% | 0-8,1.106/mm³ |
| HGB | < 95% | 0-25 g/dl |
| HCT | < 95% | 0-80% |
| PLT (whole blood) | < 95% | 0-2000.10³/mm³ |
| PLT (PLT concentrate) | < 95% | 0-4500.10³/mm³ |
| LYM | < 95% | -- |
| MON | < 95% | -- |
| NEU | < 95% | -- |
| EOS | < 95% | -- |
| BAS | < 95% | -- |
