Máy siêu âm 4D Logiq E9 GE Healthcare
- Tải Báo giá - Tài liệu
- Giới thiệu
- Thông số kĩ thuật
- Cấu hình
- Phụ kiện
- Nhận xét
- Sản phẩm cùng phân khúc giá

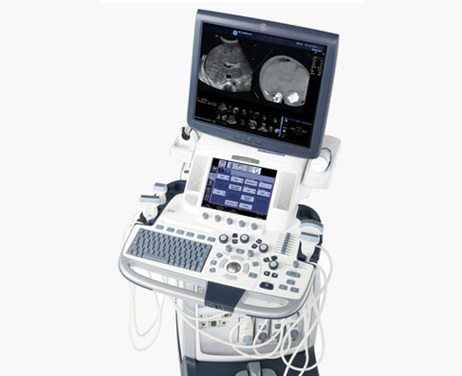

LOGIQ E9 * là một hệ thống chẩn đoán hình ảnh đa năng giúp đáp ứng mọi nhu cầu thăm khám của bạn.Trong quá trình chăm sóc sức khỏe và thăm khám siêu âm nhu cầu ngày càng nhiều, Máy siêu âm của bạn phải đủ khả năng đáp ứng với các tính năng linh hoạt, dễ sử dụng, tốc độ cũng như độ tin cậy cao.
LOGIQ E9 có thể giúp bạn:
- Cung cấp chất lượng hình ảnh vượt trội trên nhiều hình thái cơ thể bệnh nhân.
- Chẩn đoán dòng máu mà không có những hạn chế của Doppler
- Nâng cao công việc của bạn.
- Tích hợp siêu âm thời gian thực với thu nhận từ CT, MRI, PET, hoặc hình ảnh siêu âm.
- Trực quan theo dõi vị trí trong quá trình quét.
ATO
Tissue Harmonics
CrossXBeam
SRI-HD
Auto-IMT (Intima Media Thickness)
Contrast Enhanced deep abdominal and superficial contrast imaging w/Amplitude Modulation
Elastography
2D/3D Vascular Quantification
TVI Tissue Velocity Imaging
TVD Tissue Velocity Doppler
Q-Analysis
Multiplanar imaging (view any plane individually or simultaneously with other planes)
TUI Tomographic Ultrasound Imaging (View volume data in multiple slices, like MRI and CT)
VOCAL Volume Calculation
Functional Details
Volume Naviagtion includes Fusion Imaging, GPS, and Needle Tracking

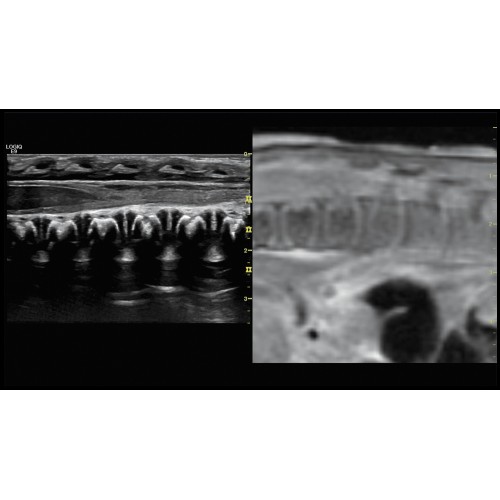

Fusion: Merges real-time ultrasound with CT, MRI, PET, or ultrasound images
GPS tracking allows you to visually track your position from different vies, guide biopsies, and simplify the counting of masses, lesions and modules.
Needle Tracking increases accuracy for needle guided procedures using a reusable sensor that displays the position of the needle tip.
Virtual Tracker. Shows a virtual projection of the needle path using a sensor on the needle hub
Ergonomic Transducers
Imaging Details
Access unseen image uniformity from the near to far field
Organ-specific imaging for improved visibility with bigh-definitely contrast resolution
Acoustic Amplifier Technology results in higher sensitivity
Single Crystal Technology increases bandwidth, offering better signal to noise and improved axial resolution and penetration
Matrix Array Technology for more uniform resolution throughout the field of view
Volume Hybrid Technology for superior spatial and temporal resolution
Advanced Volume Navigation tools helps increase diagnostic confidence
Scan Assistant program enables auto steering of color Doppler and image setting controls for fewer keystrokes and improved patient care
System Design
Motorized adjustable height makes it easy to create a custom set up for any user
Monitor can be tilted all the way down for easy movement of the system
On average, the system is 20% smaller and 45 kgs lighter than comparable ultrasound systems
User-friendly keyboard clusters 95% of the most-used keys around the trackball
Customizable touchscreen panel enables you to custom set system specifications
E-Series transducers designed with lighter materials, improved ridges for easier handling and flexible, lightweight cables
Motor-controlled height adjustment of keyboard
Deep penetration ability, even on larger patients
Tissue Harmonics
CrossXBeam
SRI-HD
Auto-IMT (Intima Media Thickness)
Contrast Enhanced deep abdominal and superficial contrast imaging w/Amplitude Modulation
Elastography
2D/3D Vascular Quantification
TVI Tissue Velocity Imaging
TVD Tissue Velocity Doppler
Q-Analysis
Multiplanar imaging (view any plane individually or simultaneously with other planes)
TUI Tomographic Ultrasound Imaging (View volume data in multiple slices, like MRI and CT)
VOCAL Volume Calculation
Functional Details
Volume Naviagtion includes Fusion Imaging, GPS, and Needle Tracking
Fusion: Merges real-time ultrasound with CT, MRI, PET, or ultrasound images
GPS tracking allows you to visually track your position from different vies, guide biopsies, and simplify the counting of masses, lesions and modules.
Needle Tracking increases accuracy for needle guided procedures using a reusable sensor that displays the position of the needle tip.
Virtual Tracker. Shows a virtual projection of the needle path using a sensor on the needle hub
Ergonomic Transducers
Imaging Details
Access unseen image uniformity from the near to far field
Organ-specific imaging for improved visibility with bigh-definitely contrast resolution
Acoustic Amplifier Technology results in higher sensitivity
Single Crystal Technology increases bandwidth, offering better signal to noise and improved axial resolution and penetration
Matrix Array Technology for more uniform resolution throughout the field of view
Volume Hybrid Technology for superior spatial and temporal resolution
Advanced Volume Navigation tools helps increase diagnostic confidence
Scan Assistant program enables auto steering of color Doppler and image setting controls for fewer keystrokes and improved patient care
System Design
Motorized adjustable height makes it easy to create a custom set up for any user
Monitor can be tilted all the way down for easy movement of the system
On average, the system is 20% smaller and 45 kgs lighter than comparable ultrasound systems
User-friendly keyboard clusters 95% of the most-used keys around the trackball
Customizable touchscreen panel enables you to custom set system specifications
E-Series transducers designed with lighter materials, improved ridges for easier handling and flexible, lightweight cables
Motor-controlled height adjustment of keyboard
Deep penetration ability, even on larger patients
01 thân máy chính
01 đầu dò convex
01 đầu dò linear
01 đầu dò 4D
Phụ kiện chuẩn kèm theo
01 đầu dò convex
01 đầu dò linear
01 đầu dò 4D
Phụ kiện chuẩn kèm theo
Phụ kiện tiêu chuẩn
